Peak Wide Stand Microscope is a simple measuring microscope designed to be compact and light weight, but characterized by a wider field of view than that of the conventional microscope. It allows not only to provide magnified view of fine pattern and contour of objects, but also to measure length and compare dimension by using a scale included in the eye-piece. Has a helicoid focus mechanism
Peak Wide Stand Microscope will be useful not only for the general observation but also for improving accuracy in precision machining and securing uniform quality in the inspection process.
By reading the scale engraved on the focusing ring and the main needle of the lens barrel, depths can be measured with the accuracy of 0.1mm. There are 100 of these divisions. Depth is measured by focusing on two different depths and measuring the change in divisions between the two focusing points. This microscope is convenient for measuring the thickness, height or depth of subjects having different levels and for measuring the depth of print cylinders and printing plates, copper plates.
Threaded Base: Pitch = 1mm, Diameter = 41mm
2034 series Wide Stand Microscopes can be attached to a digital camera.
Interested in capturing images with a digital camera using your 2034 or 2054 series. We can provide a solution. Send an e-mail with your requirements including:
The PEAK microscope you have or are interested in purchasing and the make and model of the Digital Camera. We will recommend a set of adapters and quote accordingly
Click to download 2034 Dimensions
Peak Adapter Universal
The universal tighten on the 2034 or 2054, eye piece and threads to another customer adapter for the camera. OPT-PAU
| Item Number |
2034-150
2054-150
2054-150 CIL |
2034-200
2054-200
2054-200 CIL |
2034-300
2054-300
2054-300 CIL |
| Magnification |
150X |
200X |
300X |
| Field of View |
0.96 mm ø |
0.72 mm ø |
0.48 mm ø |
| Min. Scale Division |
No. 94 = 0.005 mm
No. 97 = 0.0002" |
No. 104 = 0.002 mm
No. 107 = 0.0001" |
No. 114 = 0.001 mm
— |
| Measuring Range |
0.9 mm
0.035" |
0.6 mm
0.023" |
0.4 mm
— |
| Working Distance |
9.2 mm |
6.7 mm |
4.0 mm |
| Numerical Aperture |
0.24 |
0.35 |
0.4 |
| Focal Distance |
7.3 mm |
5.7 mm |
3.9 mm |
Sizes and Net weight of each item (accessories excluded)
| Item Number |
2034-20-300 |
2054-20-300 |
2054-40-300 CIL |
| Size |
63 ø X 172 mm |
69 ø X 172 mm |
63 ø X 172 mm |
| Net Weight |
237~241 gm. |
263~267 gm. |
393~394 gm. |
Click for full Tolerance of Metric Reticles chart
Magnifiers with reticles are not supplied with certification certificates.
Certification if required must be sent to a certification lab.
Buyer is responsible for the source and cost.
Description of Lighting Systems Shown Here.
Note:
To change magnification on a existing magnifier.
To change magnification, change the objective lens and buy the 10 eye piece with the respective reticle installed.
Having the reticle installed at the factories clean room to eliminate any chance of dust on the reticle.
Also making it easier changing magnification
The eye piece is 10 power and contains the reticle.
10x eye piece and 20x objective lens = 200 power
Example:
Changing from 60 to 200
200X Eye Piece with Installed #107 Inch Standard Reticle Black Copy (OPT-P2034RET107EP) ( $126.00 )
20X (OPT-P2034OBJ20) ( $249.00 )
Replacement parts shown below.
OPT-PPLLED

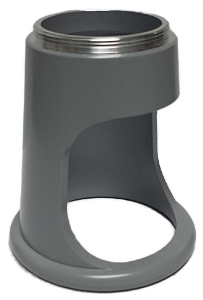

OPT-P2054BASE
Reticles available are shown below, larger view shown here.
Custom Reticles Are Available, Click Here
Note:
Peak is back in production of magnifications of 150x and greater.
For magnifications of 20x, 40x, 60x and 100x see the LED Wide Stand Measuring Depth Measuring Microscopes shown here.
E-mail if you would like to be notified when Peak magnifications of 20x, 40x ,60x and 100x are available.
Due to increased demand, current prices are not stable - e-mail or phone for current price.
If ordering online we will reply with current price for your approval.
- Models: OPT-P2034-150, OPT-P2034-150M, OPT-P2034-200, OPT-P2034-200M, OPT-P2034-300M, OPT-P2034RET94, OPT-P2034RET97, OPT-P2034RET104, OPT-P2034RET107, OPT-P2034RET114, OPT-P2034OBJ15, OPT-P2034OBJ20, OPT-P2034OBJ30, OPT-PAU, OPT-P2034EP, OPT-P2054BASE, OPT-P2034B, OPT-PPLBULB, OPT-PPLLED, OPT-P2034BASE & OPT-P2034REP
