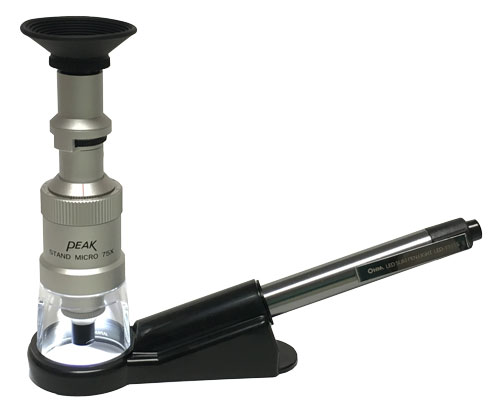

Peak Stand Microscope is a small size, lightweight and conveniently portable microscope. It is designed to cover the range in between the high-grade, heavily equipped microscopes and the various magnifiers 3x-30x) developed by Peak. It can easily, speedily and accurately catch the subject to be examined with its bright and superior resolving power and smooth-working mechanism.
This microscope is convenient for measuring the thickness, height or depth of subjects having different levels and for measuring the depth of items like print cylinders, printing plates and other similar applications.
The precision made focusing ring, simplifies operation, and the attachable/detachable rubber eyepiece increases the ease in operation.
A scale is built into the scale chamber above the focusing ring
The lens barrel of the eyepiece is the visibility adjustment ring.
First turn this ring and set it at the position where the scale can be seen clearly.
Then turn the focusing ring refocus on the next level.
By reading the scale engraved on the focusing ring and the main needle of the lens barrel, depths can be measured with the accuracy of 0.1mm (.004").
This scale can be easily interchanged according to use. Three kinds of scales-standard, for tooling, for printing are available.
Peak Stand Microscope is ideal for use in factories, inspection rooms and research laboratories.
Scales are available in metric or inches
Click for full Tolerance of Metric Reticles chart
Magnifiers with reticles are not supplied with certification certificates.
Certification if required must be sent to a certification lab.
Buyer is responsible for the source and cost.
Description of Lighting Systems Shown Here.
Click to Download 2008 Insert
Click to Download 2008 Measurements and Specs
Item Number |
2008-25 |
2008-50 |
2008-75 |
2008-100 |
Magnification |
25X |
50X |
75X |
100X |
Field of View |
3.30 mmø |
2.00mmø |
1.09mmø |
0.84mmø |
Min. Scale Div. |
No. 24 = 0.05mm
No. 26 = 0.002" |
No. 13 = 0.02mm
No. 15 = 0.001" |
No. 34 = 0.01mm
No. 36 = 0.0005" |
No. 44 = 0.005mm
No. 46 = 0.0005" |
Measuring Range |
3.0mm |
1.6mm |
1.0mm |
0.8mm |
Working Distance |
17.0mm |
11.7mm |
11.7mm |
11.6mm |
Numerical Aperture |
0.11 |
0.18 |
0.22 |
0.22 |
Focal Distance |
19.8mm |
14.9mm |
9.9mm |
9.9mm |
Size (mm) |
41.5øx122 |
41.5øx122 |
41.5øx122 |
41.5øx122 |
Net Weight |
83 g |
83 g |
83 g |
88 g |
Threaded base: Diameter = 30mm, Pitch = 1mm
Quantity Discount:
5% off all orders that total $1,010.00 or more on items of the same model. (Accessories and Reticles not included)
For items that are priced over $1,010.00 two or more of the same item must be ordered to receive the discount.
DISCOUNT TABLE SHOWN AT BOTTOM OF PAGE
- Models: OPT-P2008-25T, OPT-P2008-50T, OPT-P2008-75T, OPT-P2008-100T, OPT-P2008-25M, OPT-P2008-50M, OPT-P2008-75M, OPT-P2008-100M, OPT-P2008-25, OPT-P2008-50, OPT-P2008-75, OPT-P2008-100, OPT-P2008LH, OPT-P2008CASE, OPT-P2008LHNL, OPT-PPLLED, OPT-DMRSTAND, OPT-P2008EYECAP, OPT-P2008RET24, OPT-P2008RET25, OPT-P2008RET26, OPT-P2008RET13, OPT-P2008RET14, OPT-P2008RET15, OPT-P2008RET34, OPT-P2008RET35, OPT-P2008RET36, OPT-P2008RET44, OPT-P2008RET45 & OPT-P2008RET46
