Peak 2016 Scale Loupe 15X

Peak 2016 Scale Loupe 15X

The 2016 Scale Loupe 15X offer a wide field of view (20 mm) with the magnifying of power 15X. By observing through the magnifier with the appropriate scale resting on the object to be examined, one can measure very easily and rapidly, the exact length, the angle between two straight lines, the radius of curvature of a circular arc, etc.

The 2016 Peak Scale Loupe is a wide field (20 mm) magnifying glass of magnifying power 15X combined with a graduated scale glass selectable from among five different kinds. To enable the sharp observation of the entire field of a 14mm diameter object magnified 15 times. The design corrects almost perfectly the curvature of field and the lateral chromatic aberration by a combination of four lenses being made of a new type of optical glass. All six air to glass interfaces of the magnifier are multi-coated to reduce internal reflection

To use the magnifier, adjust the distance between the scale glass and the magnifier by rotating the ring on the latter so that the user cans observer sharply the magnified image of the scale.

Magnification: 15X
Field of View: 20 mm
Effective Aperture: 13 mm
Scale Length: 14 mm
Minimum Scale Division: 0.1 mm / 0.005"
Size: 35 x 33 mm
Net Weight: 40 g

Comes with a convenient fabric pouch.

Reticles are available in Black font or White font copy.

White or Black refers to the color of the font copy on the reticle.
Typically:
Black for light or white surfaces.
White for black or dark surfaces.

Click for full Tolerance of Metric Reticles chart

Magnifiers with reticles are not supplied with certification certificates.
Certification if required must be sent to a certification lab.
Buyer is responsible for the source and cost.

Reticles Available

Black Standard

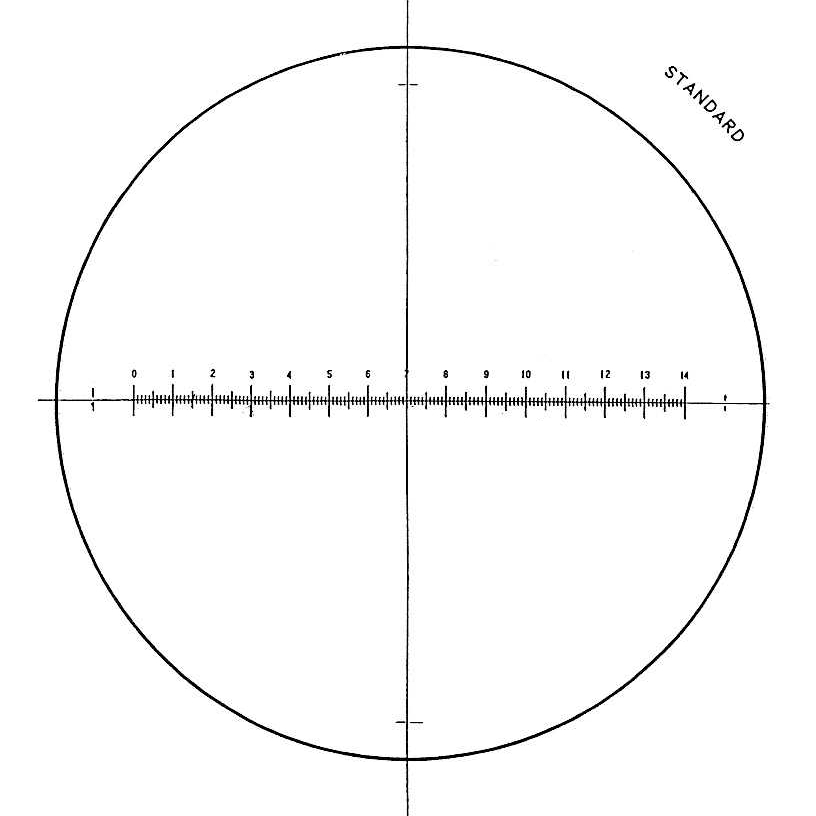

Std reticle scale, cross hair with metric scale on horizontal plane, zero left reading, scale divisions 0.1mm


1

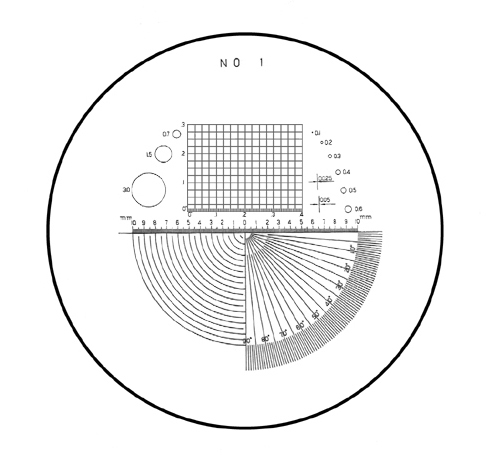

#1 reticle scale, metric scale, combination grid, angles, circles, 1/4 circle, grid


2

#2 reticle scale, combination of angles, 1/4 circle, circles in inch and metric, linear scale inch and metric


8

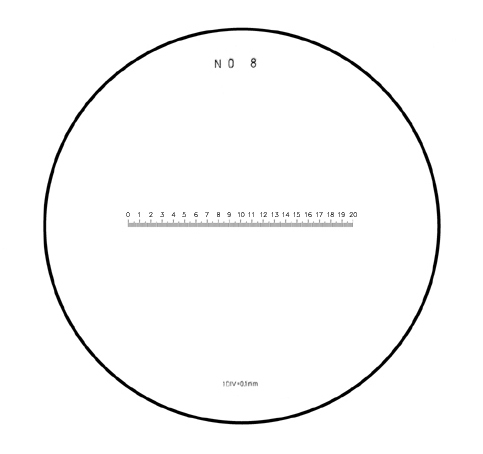

#8 reticle scale, metric scale on horizontal plane, zero left reading


13

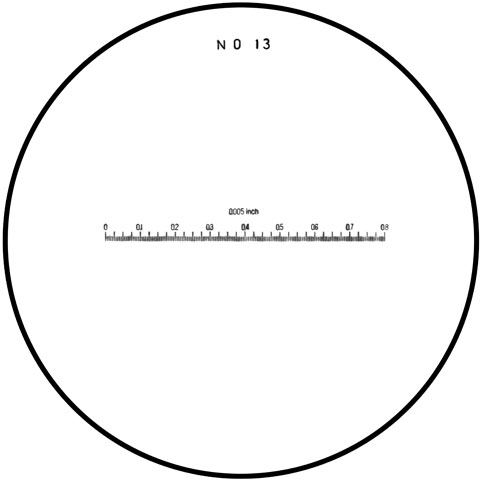

#13 reticle scale, inch scale on horizontal plane, zero left reading, scale divisions 0.005"

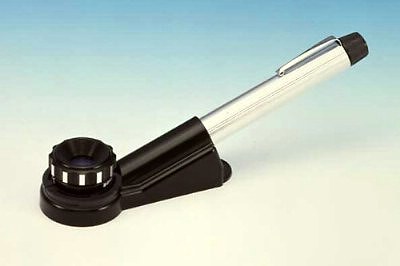

Click to order the 2016-L Peak Light Scale Loupe with Penlight and Holder

Quantity Discount:
5% off all orders that total $1,010.00 or more on items of the same model. (Accessories and Reticles not included)
For items that are priced over $1,010.00 two or more of the same item must be ordered to receive the discount.
DISCOUNT TABLE SHOWN AT BOTTOM OF PAGE

Currently 2016 has an extended delivery of 3-6 months.
We are not accepting orders or inquires.

  • Models: OPT-P2016NR, OPT-P2016-STD, OPT-P2016-1, OPT-P2016-2, OPT-P2016-8, OPT-P2016-13, OPT-P2016-STDW, OPT-P2016-1W, OPT-P2016-2W, OPT-P2016-8W, OPT-P2016-13W, OPT-P2016BASE, OPT-P2016POUCH, OPT-P2016RETSTD, OPT-P2016RET1, OPT-P2016RET2, OPT-P2016RET8, OPT-P2016RET13, OPT-P2016RETSTDW, OPT-P2016RET1W, OPT-P2016RET2W, OPT-P2016RET8W & OPT-P2016RET13W
  • Manufactured by: Peak Optics/Japan

Please Choose:
Check the box for the product, then add to the cart.

Click For Quantity Discount Table 2016 Loupe - Includes Loupe and Fabric Pouch





Click For Quantity Discount Table 2016 Scale Loupe Black Copy - Loupe with Installed Reticle and Fabric Pouch









Click For Quantity Discount Table 2016 Scale Loupe White Copy - Loupe with Installed Reticle and Fabric Pouch









2016 Replacement Parts






2016 Reticles Black Copy









2016 Reticles White Copy
