Peak 2050 and 2056 Pocket Erect Image 25x to 100x

Peak 2050 and 2056 Pocket Erect Image 25x to 100x

Erected Image Model with a scale built in.

This is the new type of erected image model with a scale built in. This new product with a built in roof prism provides you an erected image exact to life. First, rotate adjuster ring of eyepiece until the scale is brought into focus. This new microscope can be focused in the same way as in our other picket microscopes. Reticle is cross hair with horizontal scale.

To focus the microscope, hold it so that the notch at the tip of the acrylic cylinder of the microscope faces towards you, place the center of the object lens above the specimen and while tilting the cylinder forward and backward with your eye on the eye-piece lens, fix the cylinder and adjust to the best angle which can give the sharpest image.

Size 20.7mm dia.x 111mm length.

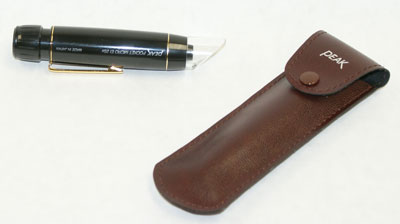

Packaged in a protective case.

Item Number 2050-25
Temporarily Unavailable
2050-50
Temporarily Unavailable
2050-75
Temporarily Unavailable
2050-100
Temporarily Unavailable
Magnification 25X 50X 75X 100X
Field of View 3.50 mm 1.70 mm 1.10 mm 0.86 mm
Min. Scale Division 0.05 mm 0.02 mm 0.01 mm 0.005 mm
Measuring Range 3.0 mm 1.6 mm 1.0 mm 0.8 mm
Size (mm) 20.7 x 111 20.7 x 111 20.7 x 111 20.7 x 111
Net Weight 25 g 26 g 28 g 28 g

2056-25x and 2056-50x is the same as the 2050 but without a scale.

Quantity Discount:
5% off all orders that total $1,010.00 or more on items of the same model. (Accessories and Reticles not included)
For items that are priced over $1,010.00 two or more of the same item must be ordered to receive the discount.
DISCOUNT TABLE SHOWN AT BOTTOM OF PAGE

Currently 2056-25 has an extended delivery of 3-6 months.
We are not accepting orders or inquires.

  • Models: OPT-P2050-25, OPT-P2050-50, OPT-P2050-75, OPT-P2050-100, OPT-P2056-25, OPT-P2056-50, OPT-P2050LED & OPT-P2050END
  • Manufactured by: Peak Optics/Japan
